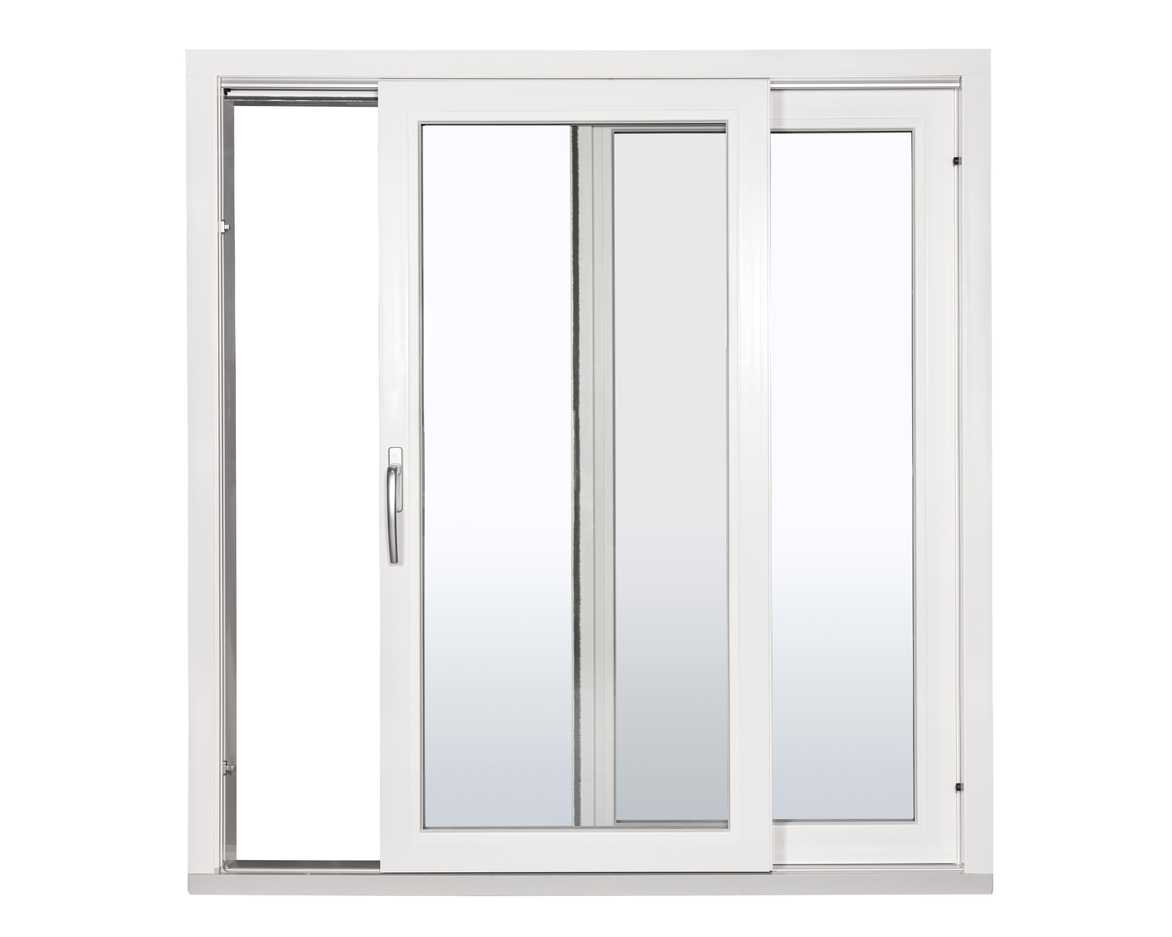

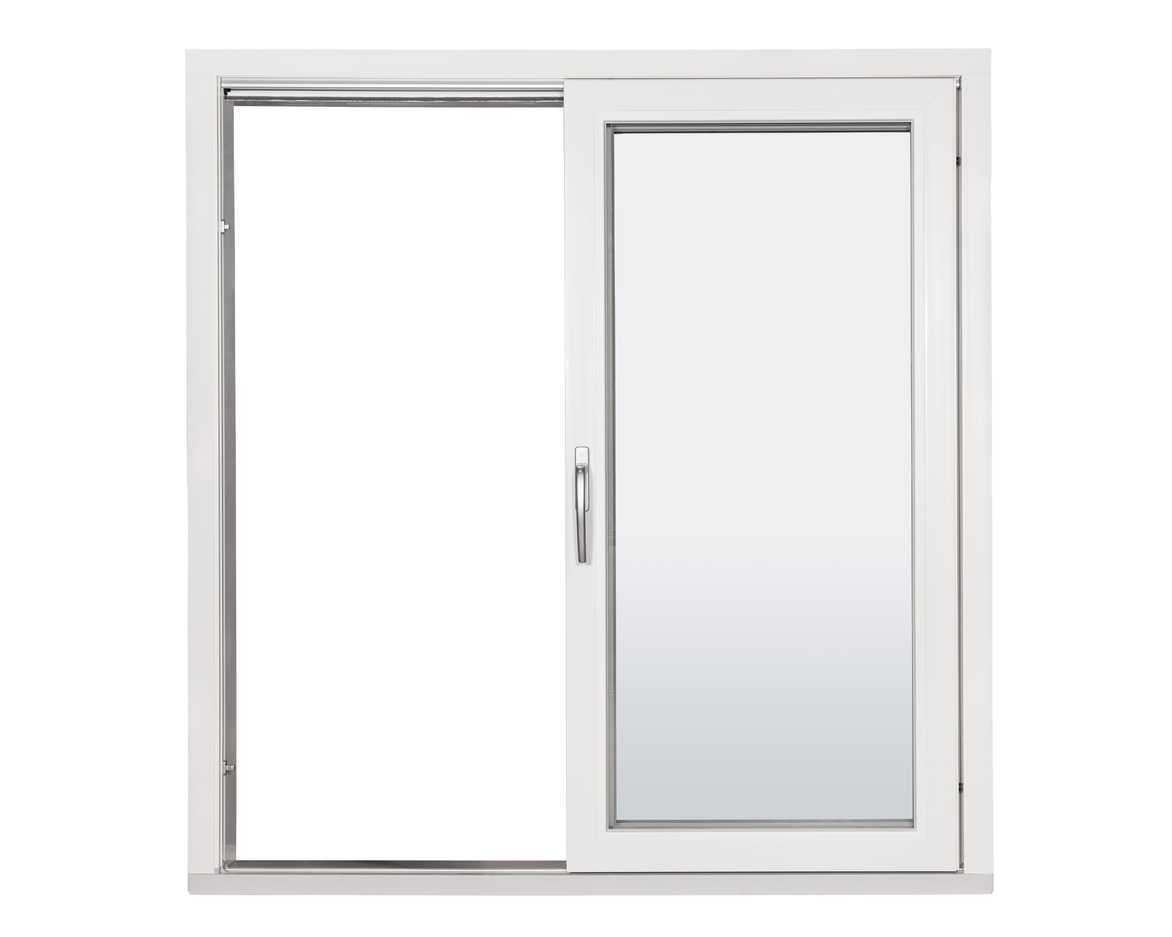

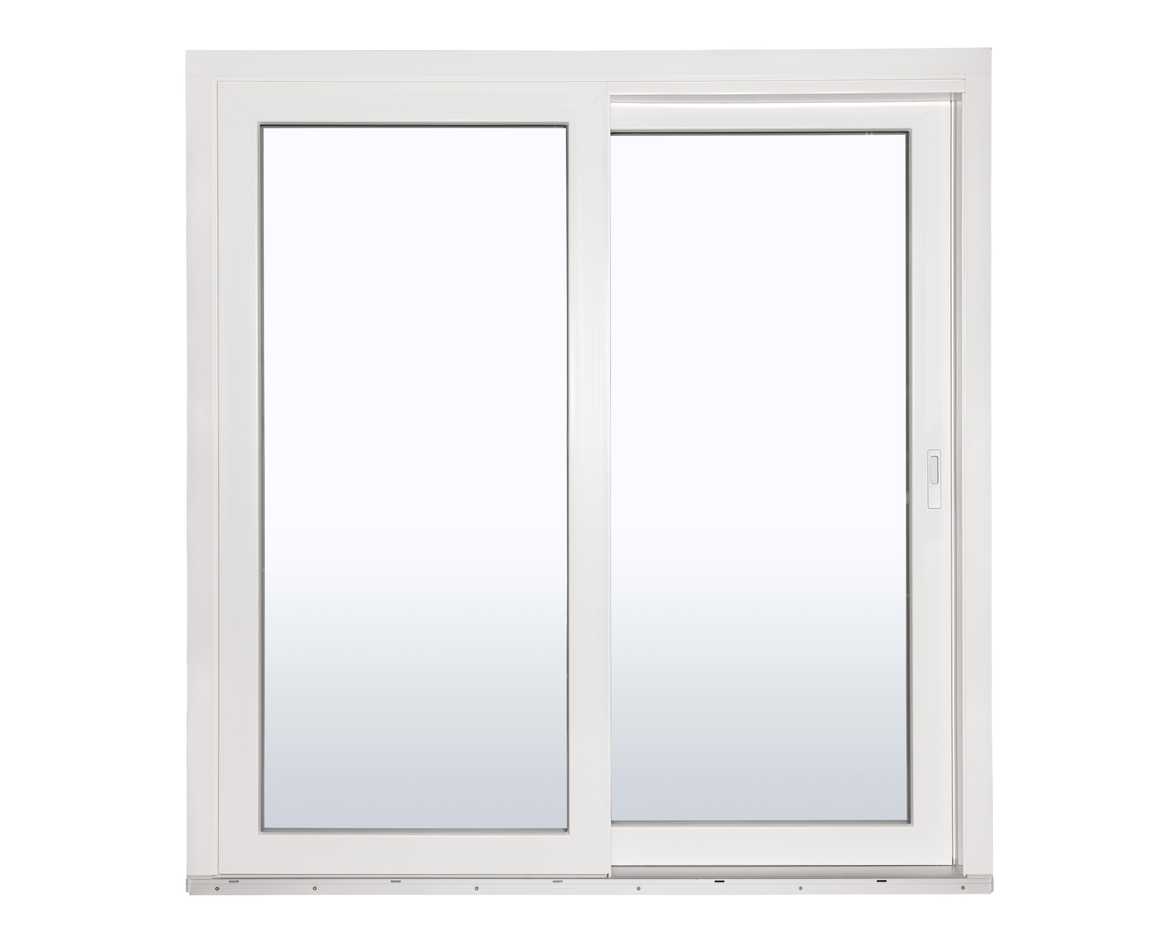

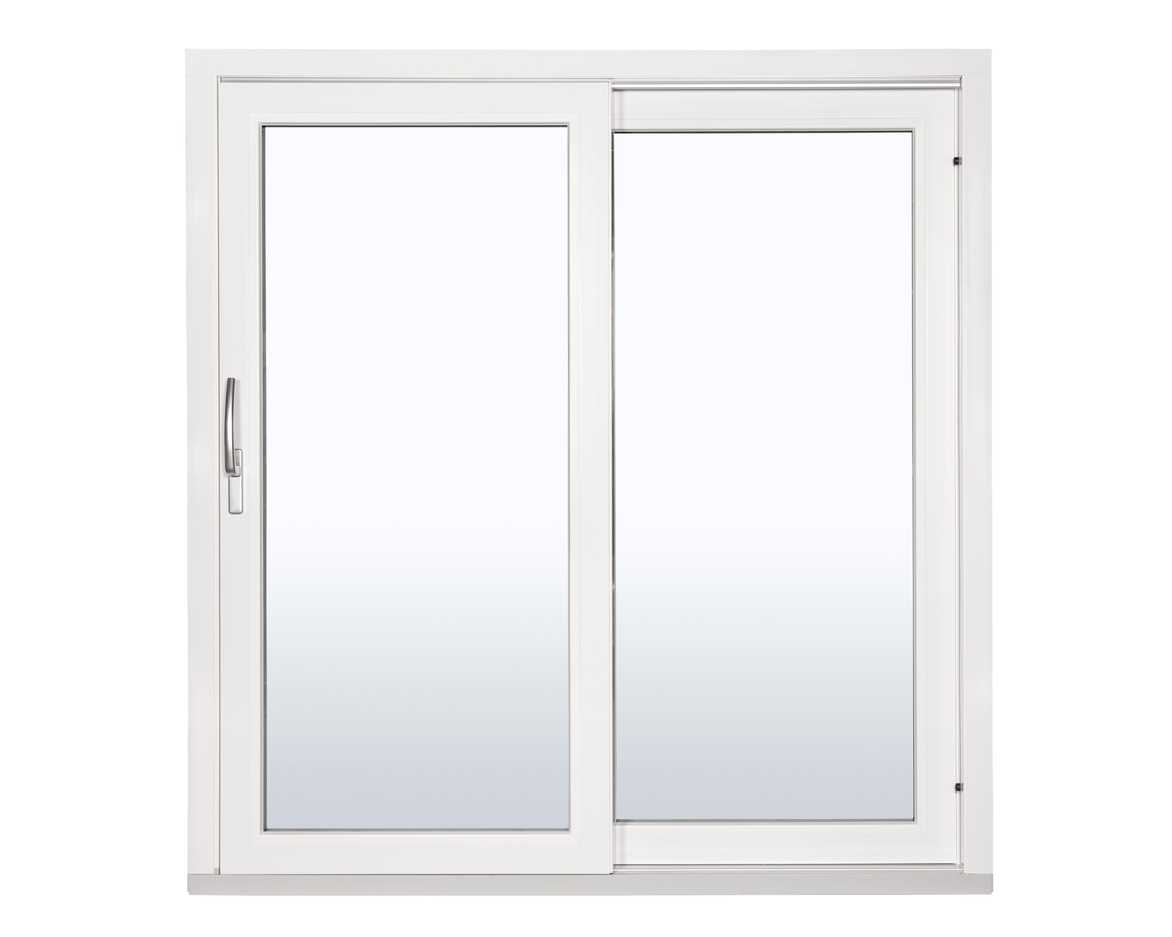

Lift Sliding doors are a perfect solution for those who want to open up and expand the living area, have large glass surfaces, maximum light penetration and a view of nature. The door is easy and flexible to operate even in large dimensions. When the door is closed, the door leaf rests on the threshold to ensure a good seal.
Gealan 9000 S profile is made of extruded, through-dyed, impact-resistant and climate-resistant PVC profiles with very good insulating properties, which give a good U-value. Steel and aluminum reinforcements are added to the profiles for extra strength and stability. Frame depth 190 mm.
A versatile and flexible system that can operate large door panels up to 330kg with the same precision.
Hardware: HAUTAU ATRIUM HS 330.
As a standard HAUTAU aluminium color turn handle inside and fixed outside.
Can alternatively be supplied with turn handles both on the inside and outside also with double cylinder lock.
HAUTAU - ThermoTop 2.1. COMFORT.
Height 50mm + 5mm sliding rail. Threshold can be built down/lowered during construction.
| Sliding door | Min | Max |
|---|---|---|
| Width | 2088 | 3988 |
| Height | 1988 | 2588 |
| (NB! With a minimum height of 1988, the minimum width is 2188) | ||
Certain other sizes/solutions can be delivered on request. Please contact us.
Standard white (RAL 9016). A selection of other colors is available on request. See our website for more information and available colours: See Colors
Supplied with 3-layer glass. Safety glass on both sides is standard. We can supply various types of functional glass, new smart solutions affect both function, appearance, lifespan, safety and economy. Functional glass is supplied as, for example, sun-absorbing, self-cleaning, anti-fog, noise-absorbing glass. Choose the right glass based on your needs and get the desired effect.
A click-on profile for groove 10x10 mm can be supplied for an additional price.
Driving rain density according to EN 12208: 9A
U-value: Good u-values. Determined, among other things, by the insulating ability of the glass and will depend on size.
The PVC profiles do not require maintenance, just cleaning with ordinary soapy water. The locking system and fittings need ordinary cleaning and lubrication.
A further development of our very popular classic door, which has been produced and supplied for over 30 years. The door opens outwards and is supplied as a balcony door, secondary entrance door and internal door.
The window is outward-opening and can be opened vertically outwards. It can be supplied as a single- or multi-sash window. Classic windows that are well suited for the rehabilitation of older homes, for cabins, or new buildings to give a completely traditional look. The windows also have the properties of a mod- ern window in terms of insulation and comfort. The window is light and easy to operate, the sash does not intrude into the room and therefore curtains and plants on the windowsill are not disturbed. Outwards opening window is getting tighter with increased wind pressure because the sash is pressed against the frame and gaskets.
Fully reversible window. The window opens outwards and can be turned 180˚ when washing. When reversed the sash does not intrude into the room and therefore curtains and plants on the windowsill are not disturbed. The window is easy to maintain and clean from inside. Outwards opening window is getting tighter with increased wind pressure because the sash is pressed against the frame and gaskets. Fixed frames are used where there is no need to open the window for ventilation and provide opportunities for large glass areas and maximum light transmission. Fixed frames also offer more options when designing the window, and can be obtained, among other things, as a non-standard frame.
Fully reversible window. The window opens outwards and can be turned 180˚ when washing. When reversed the sash does not intrude into the room and therefore curtains and plants on the windowsill are not disturbed. The window is easy to maintain and clean from inside. Outwards opening window is getting tighter with increased wind pressure because the sash is pressed against the frame and gaskets. Fixed frames are used where there is no need to open the window for ventilation and provide opportunities for large glass areas and maximum light transmission. Fixed frames also offer more options when designing the window, and can be obtained, among other things, as a non-standard frame.
