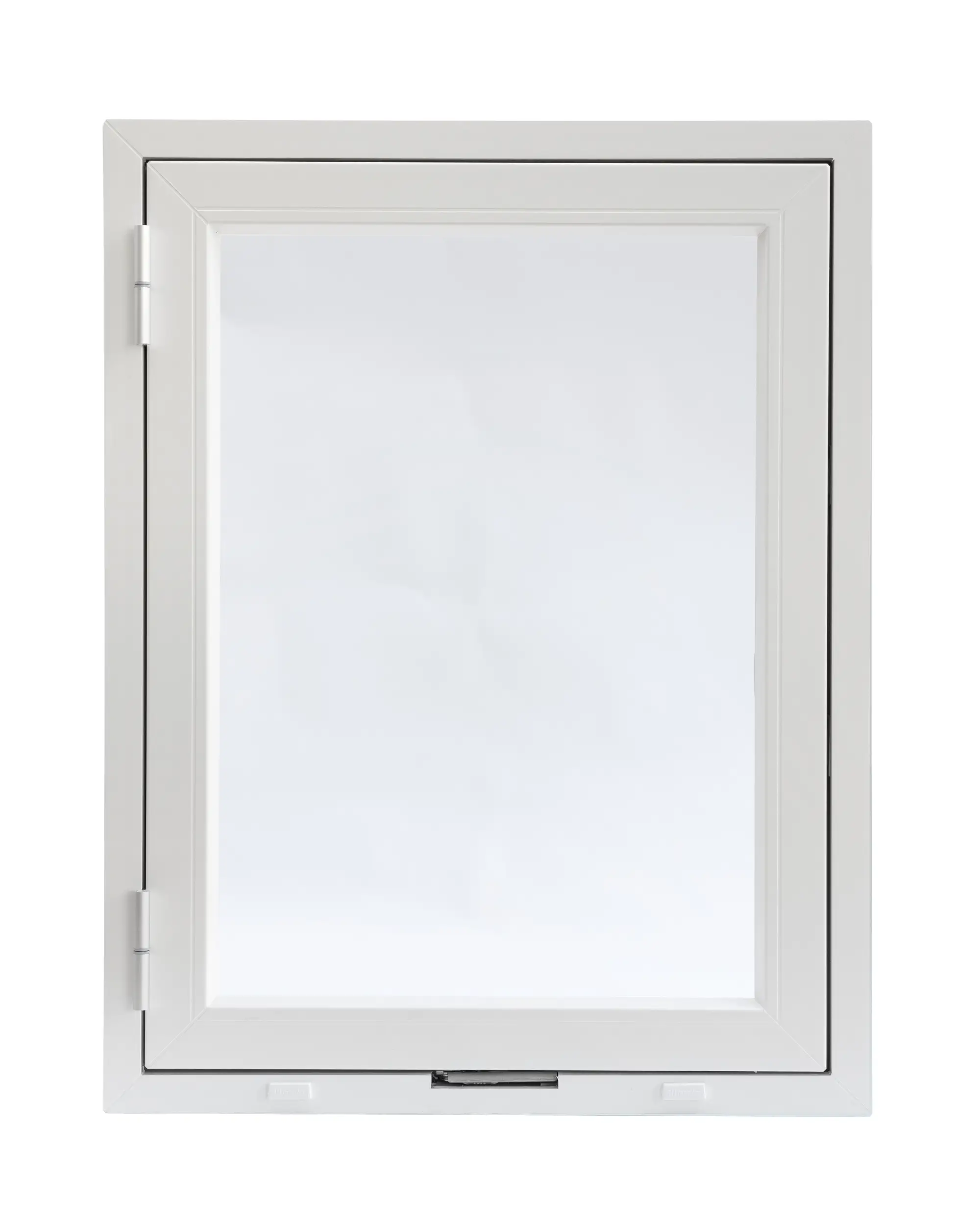

H90 Outward Opening Window
Side-hindges

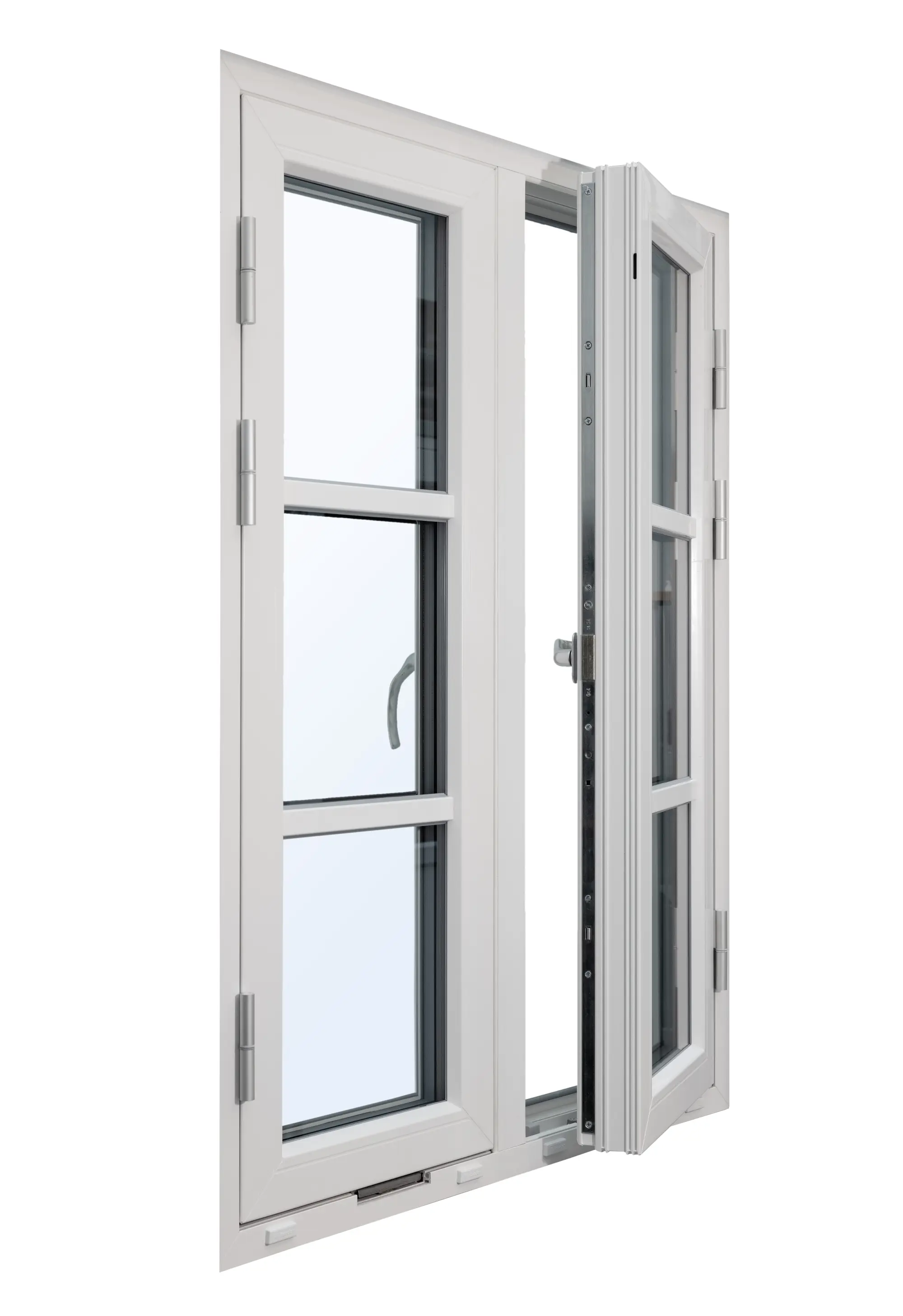

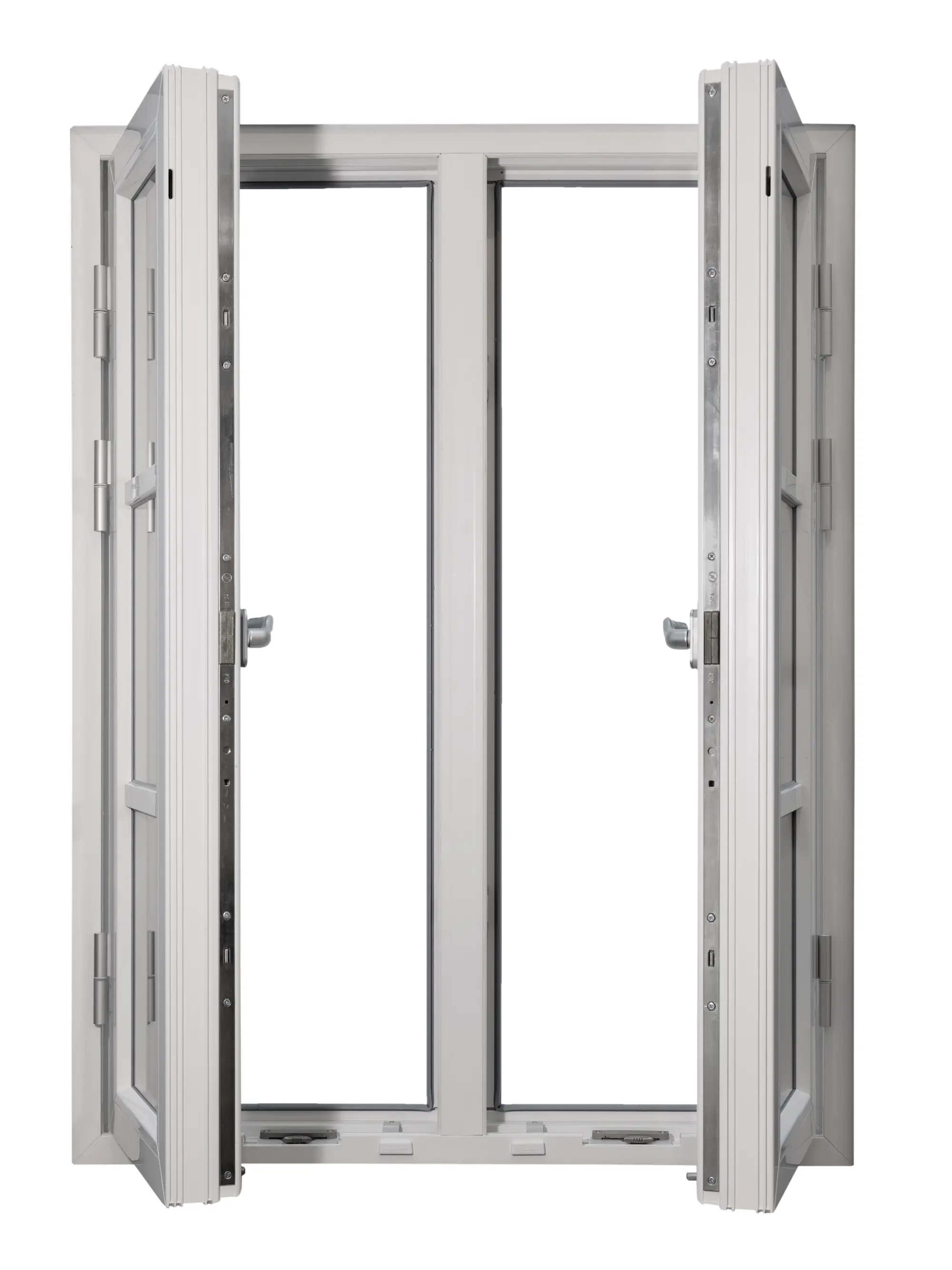

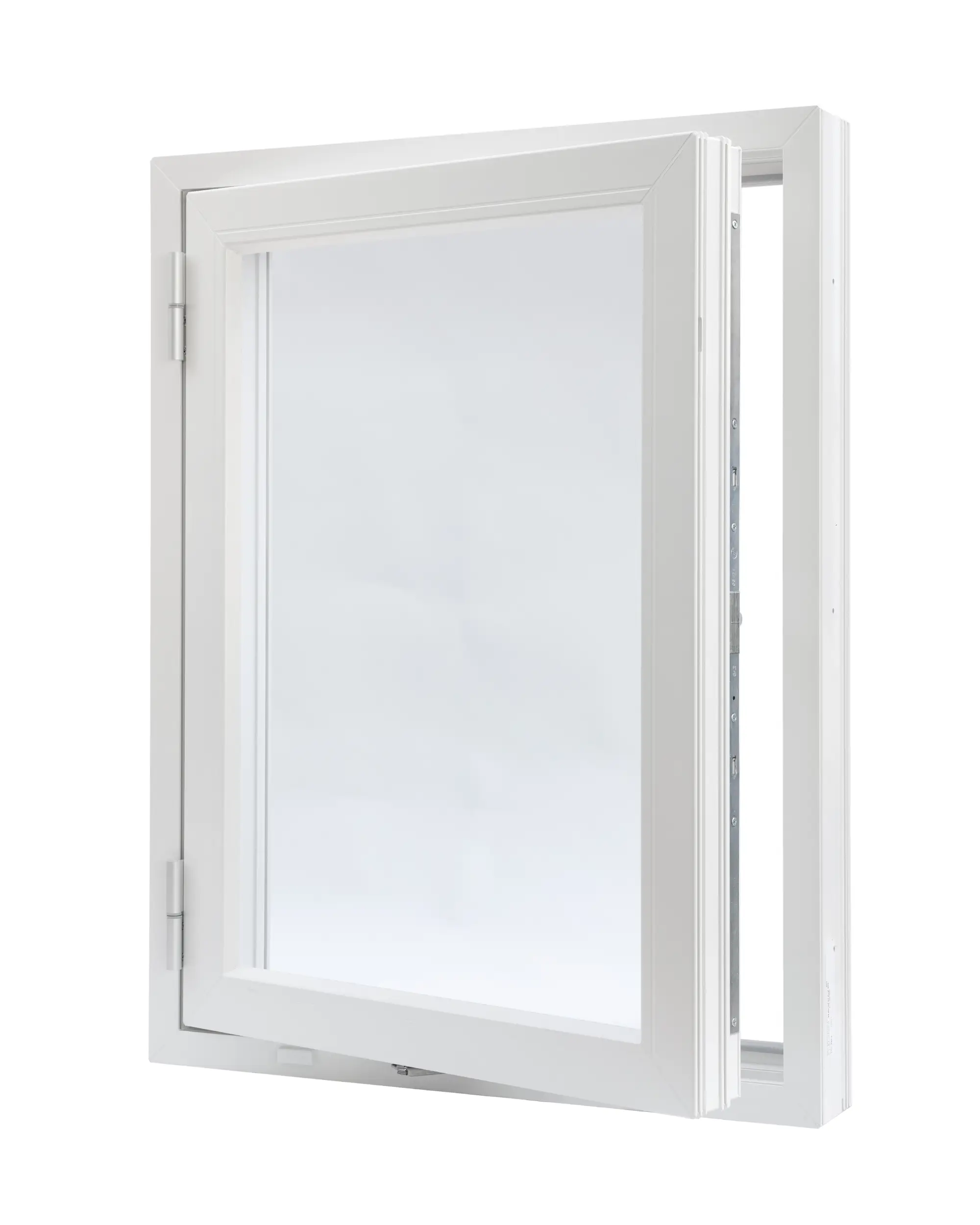

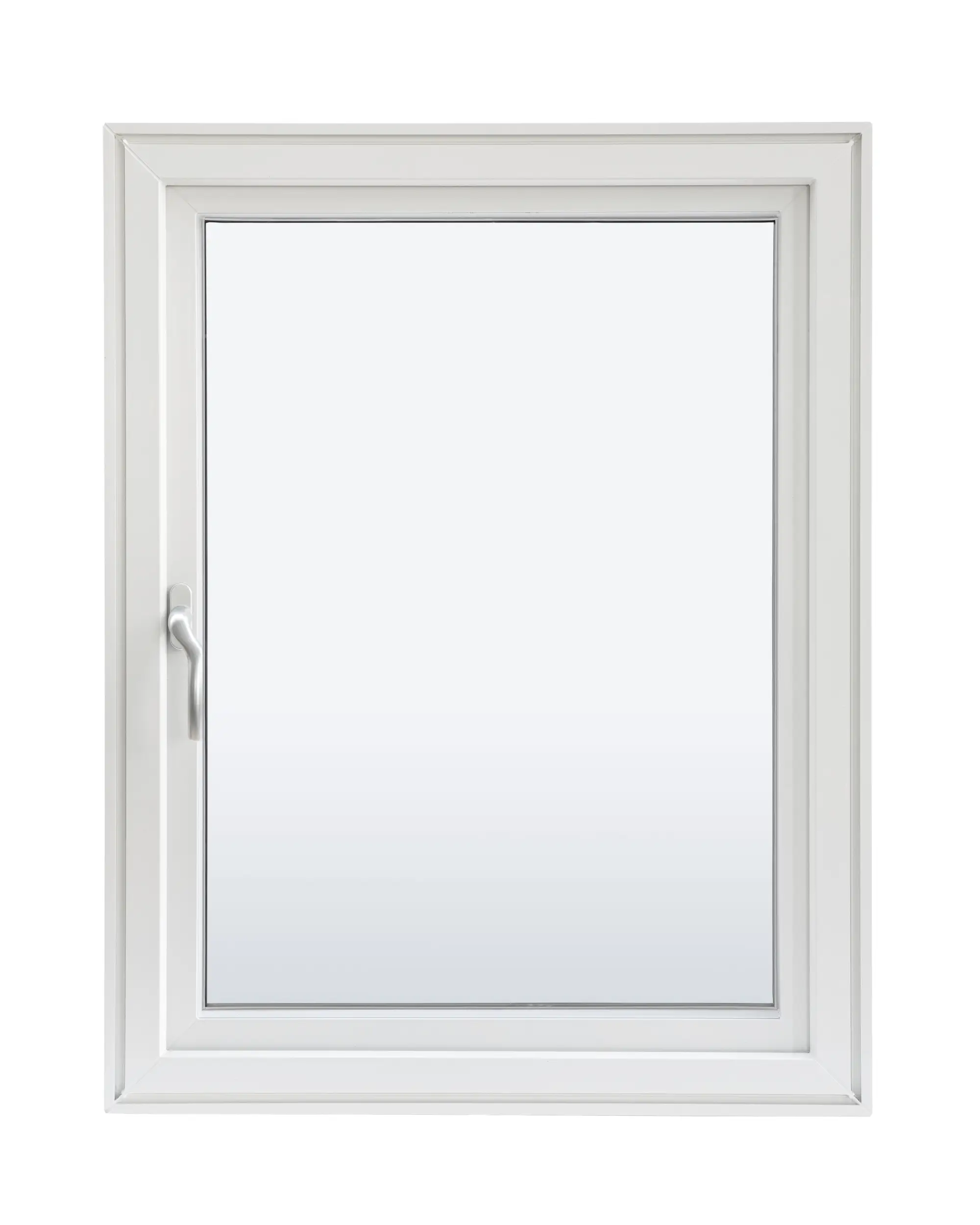

The window is outward-opening and can be opened vertically outwards. It can be supplied as a single- or multi-sash window. Classic windows that are well suited for the rehabilitation of older homes, for cabins, or new buildings to give a completely traditional look. The windows also have the properties of a mod- ern window in terms of insulation and comfort. The window is light and easy to operate, the sash does not intrude into the room and therefore curtains and plants on the windowsill are not disturbed. Outwards opening window is getting tighter with increased wind pressure because the sash is pressed against the frame and gaskets.

Specification

Profile

Energy efficient window, made of extruded, impact-resistant and climate-resistant PVC profiles with very good insulating properties, which provide good U-value. The U-value for the window is determined by the insulating ability of the glass. Enova recommends windows with 3-layer energy-saving glass. Frame depth 90 mm. PVC profiles are completely recyclable.

  • + Designed for harsh Nordic climate
  • + Great, classic design
  • + Good U-value
  • + Maintenance-friendly
  • + Long service life
  • + Recyclable

Reinforcement

Hot-dip galvanized steel reinforcements. The reinforcements are installed into profiles for extra strength and stability.

Handle

Hoppe aluminium handle, the standard is aluminium-colored but can also be obtained in black and white.

Fittings/Accessories

High quality aluminium hinges from Spilka with stainless steel pin A4.

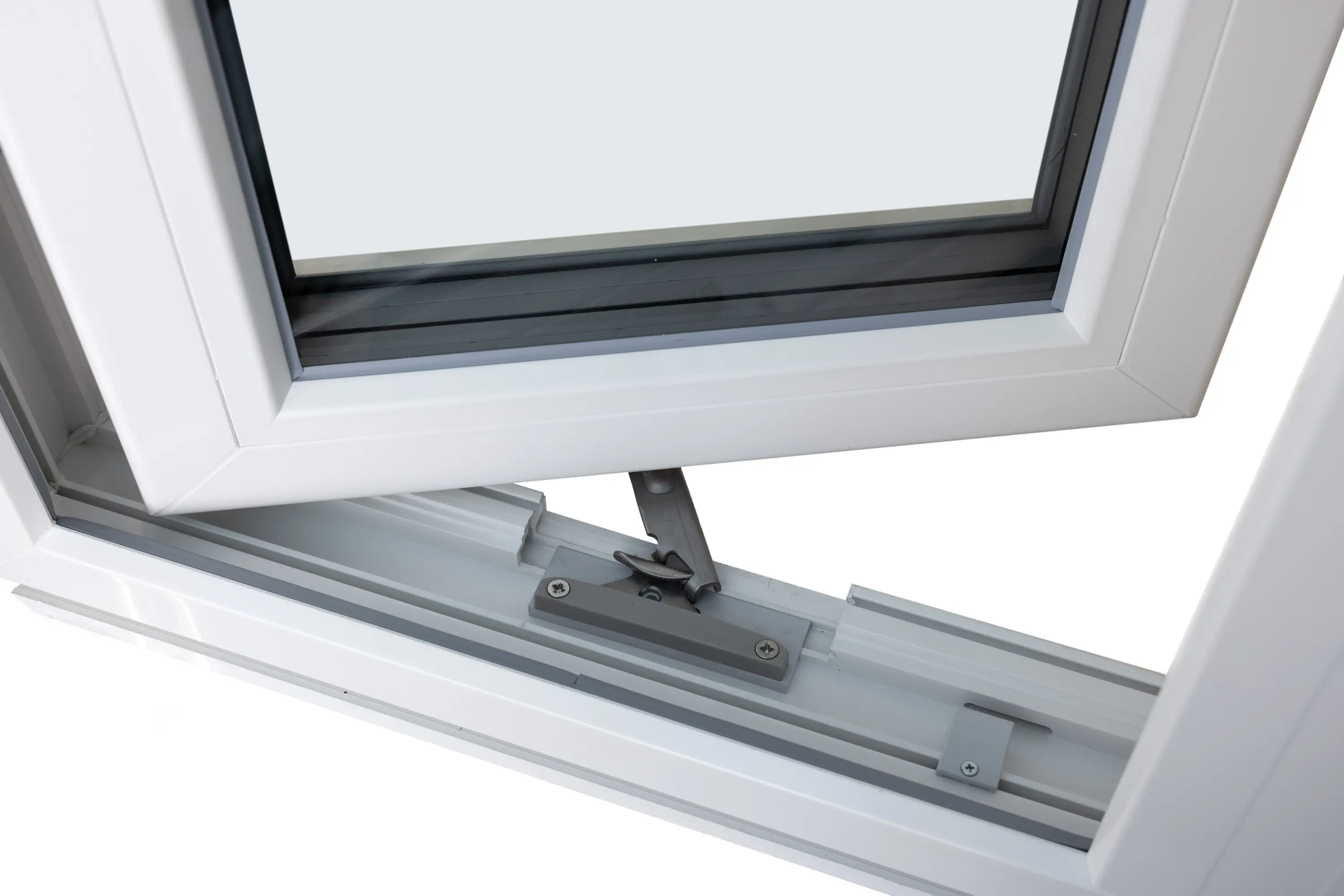

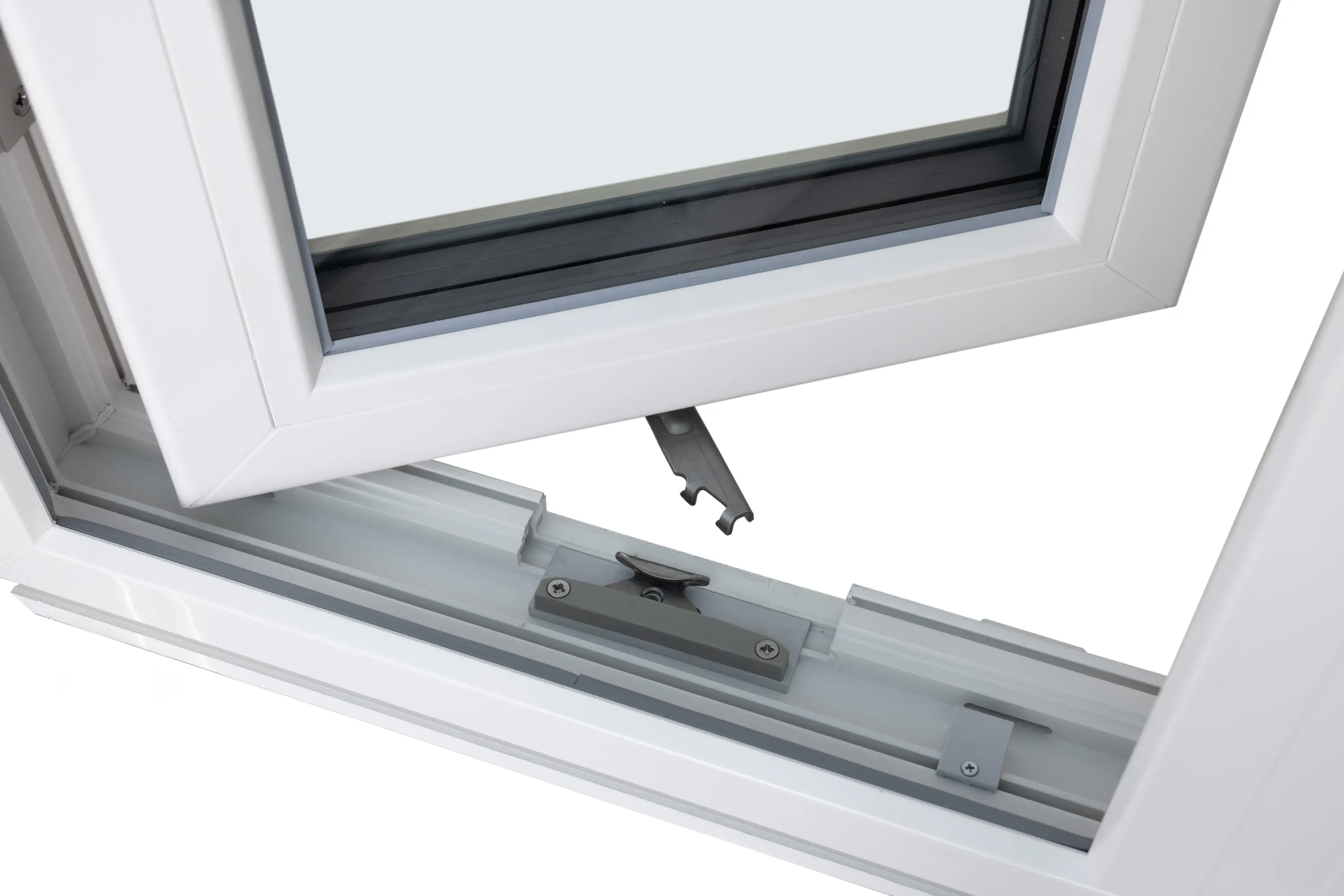

Automatic Safety and Air Barrier

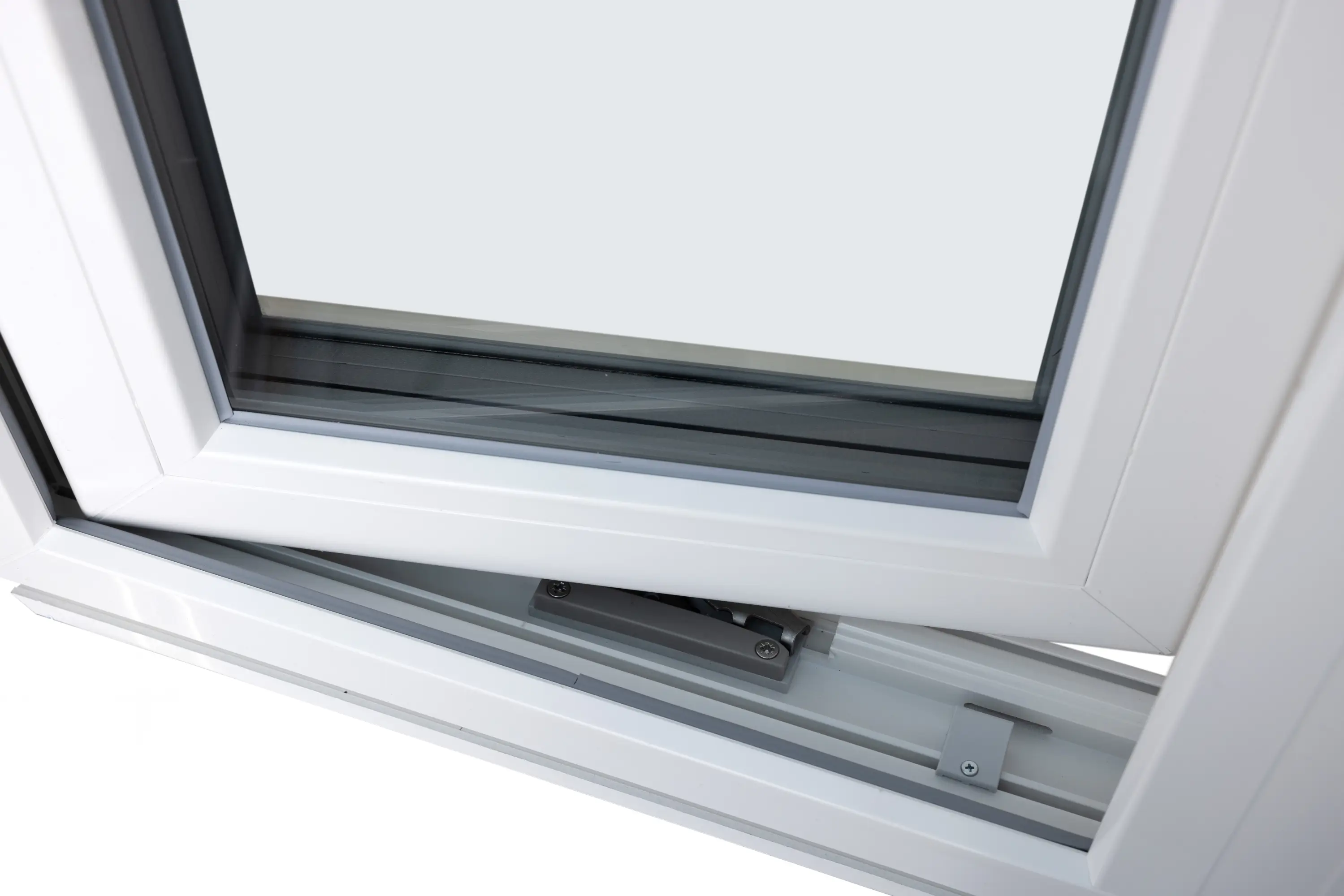

The combined air ventilation and safety locking function launches automatically when the window is opened.

Air Ventilation

All our windows can be supplied with a Spilvent Click-vent in the upper frame. The Click-vent is very tight in the closed position, and in the open position it leads the air into the room.

Lock

All our windows are supplied with children’s security and can also be supplied with a lockable handle with a key.

Combinations

The window can be delivered in various combinations with fixed and opening windows in a frame.

Decorative Bars (Sprossers)

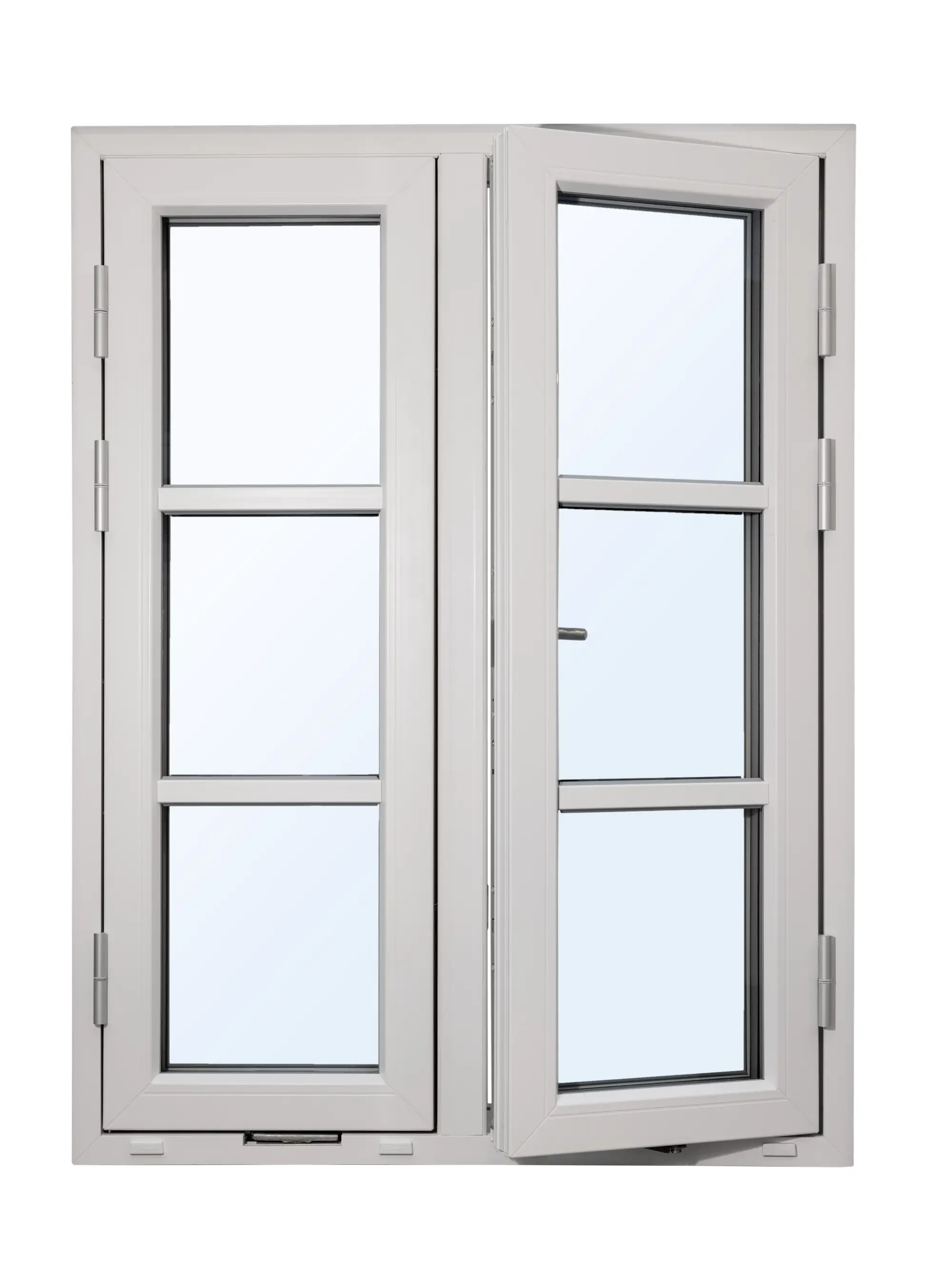

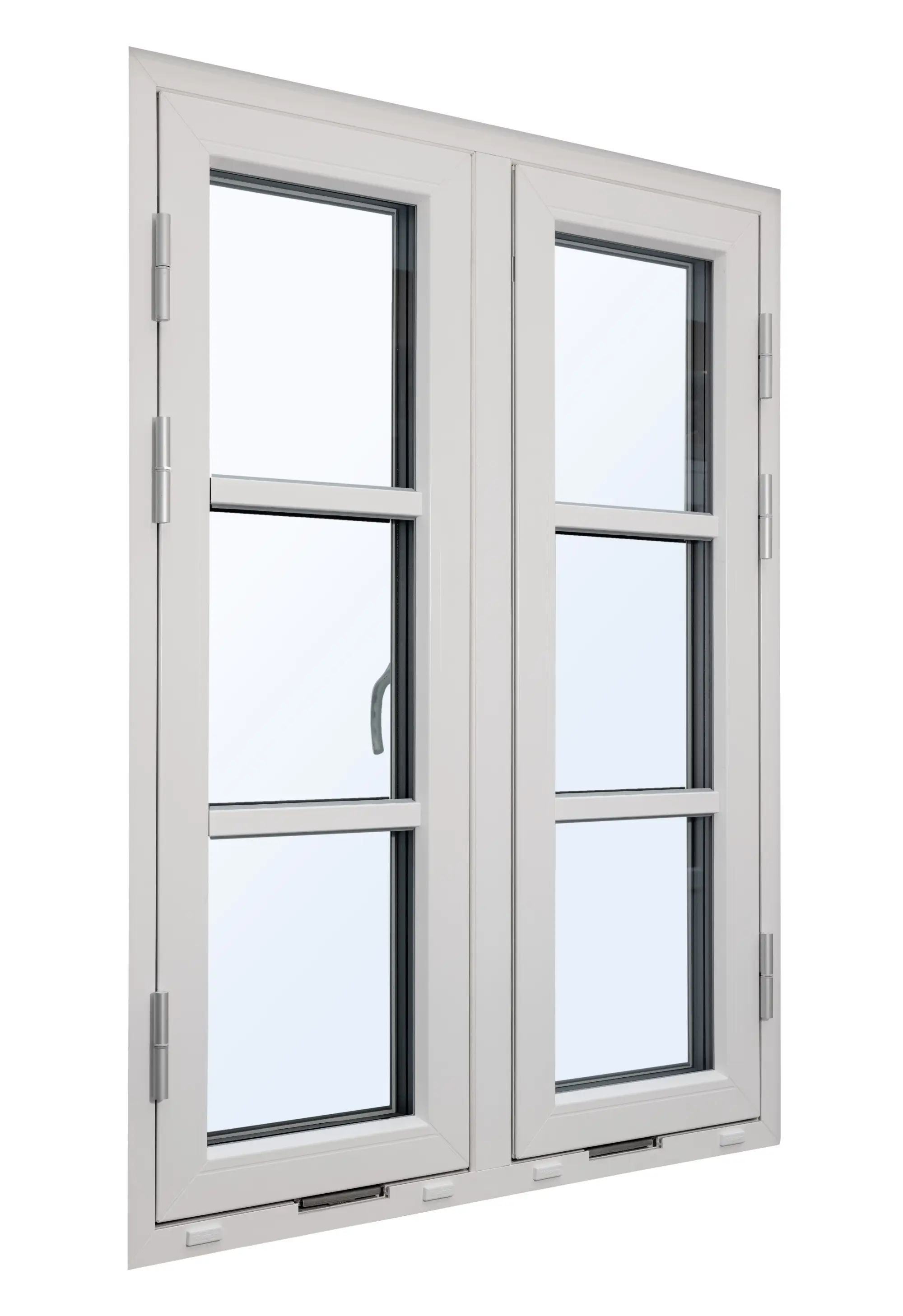

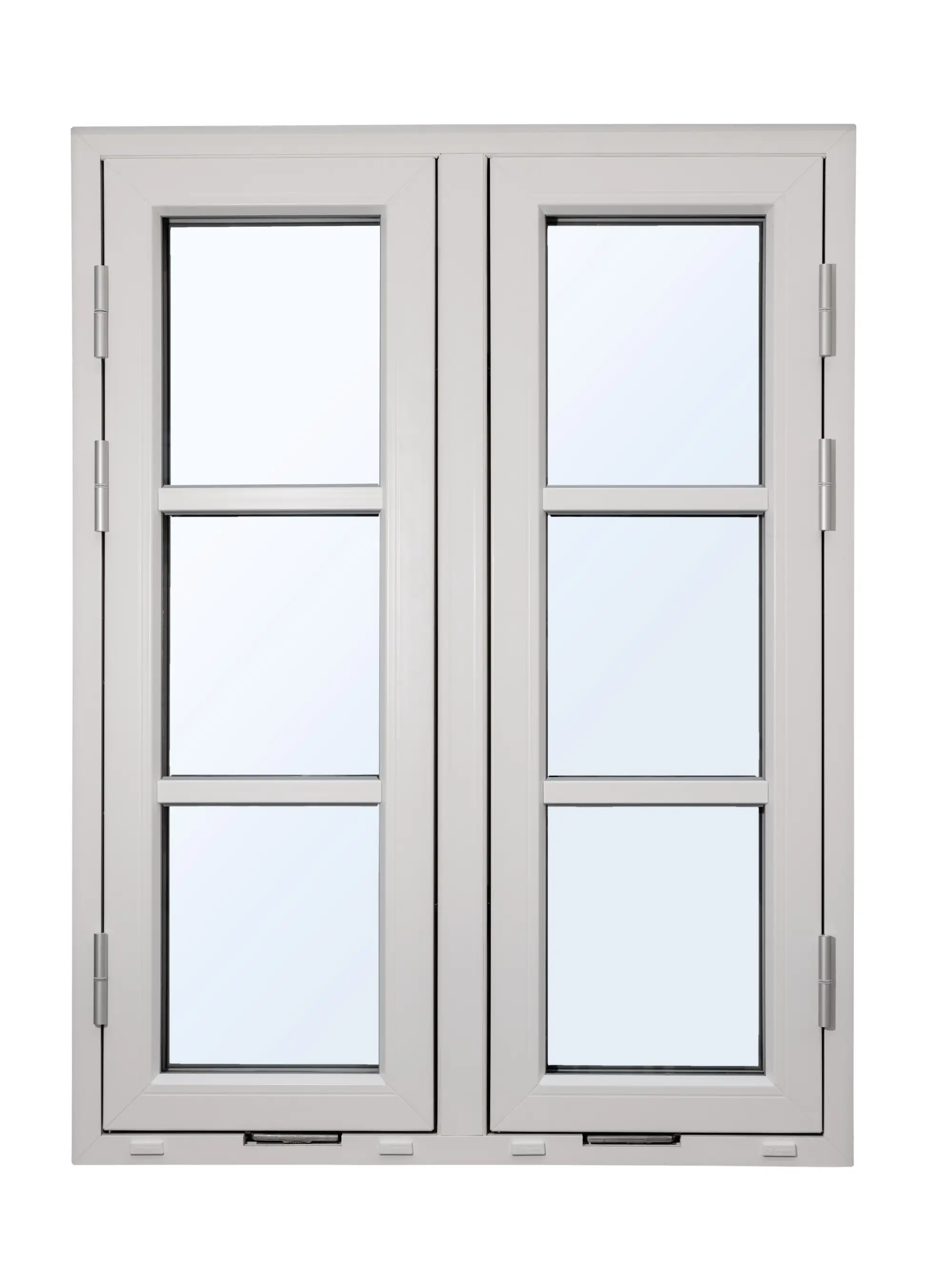

Our windows can be supplied with decorative bars that can be glued on both sides of the glass, Georgians bars, removable Vindex bars, or a combination.

Dimensions

Opening Window Min Max
Width 388 888
Height 388 1488
Fixed Frame Min Max
Width 300 2988
Height 300 2988

Grooves (Norwegian: Utforingsnot)

The products can be delivered with 10x10mm grooves through the whole perimeter of the frame (from inside) for window slopes installations.

Color

See our websites for more information and available colors: See Colors

Maintenance

The PVC profiles do not require maintenance, just cleaning with ordinary soapy water. Fittings require ordinary cleaning and lubrication.
