Specification
Profile
Made of extruded, impact-resistant and climate-resistant PVC profiles with very good insulating properties, which provides good u-value. The U-value for the door is determined, among other things, by the insulating ability of the glass. Enova recommends windows with 3-layer energy-saving glass. Frame depth 90 mm.
- + Developed for the harsh Nordic climate
- + Great, classic design
- + Good U-value
- + Maintenance-friendly
- + Long service life
- + Recyclable
Reinforcement
Hot-dip galvanized steel reinforcements. The reinforcements are added into profiles for extra strength and stability.
Hinges/Locks/Threshold
The balcony door has a Fix 3-point espagnolette and door brake for stepless "closing" in various ventilation positions. Standard threshold 25 mm (HC) in fiberglass, it can also be supplied in a full PVC frame (threshold 65mm). Spilka hinges in aluminum 6063 with stainless pin A4. Supplied with external blind plate and internal thumb turn as standard. The inner door does not have an espagnolette (espags), but an ordinary lock box that closes at one point (Assa 3107). Supplied with aluminium handle, internal thumb turn and external blind plate as a standard. Other options are available upon request.
Mullion/Full glass/Filling panel
It is possible to choose between different glass and filling panel combinations, from glass throughout the door to a filling panel in combination with glass, or a door without glass. The filling panels are made of insulated PVC elements. Standard thickness is 48mm. The minimum height for horizontal mullion is 300 mm.
Color
Standard white (RAL 9016). A selection of other colors is available on request. See our websites for more information and available colors: See Colors
Decorative bars (sprossers)
Our windows can be supplied with decorative bars that can be glued on both sides of the glass, Georgians bars, removable Vindex bars or a combination.
Dimensions
| Single door | Min | Max |
|---|---|---|
| Width | 688 | 1088 |
| Height | 1788 | 2188 |
| Double door | Min | Max |
|---|---|---|
| Width | 1088 | 1888 |
| Height | 1930 | 2188 |
Max weight of door leaf (sash) is 80kg
Grooves
The products can be delivered with 10x10mm grooves from inside of the frame for window slopes installations.
Maintenance
The PVC profiles do not require maintenance, just cleaning with ordinary soapy water. The locking system and fittings need ordinary cleaning and lubrication.
Kiti Produktai
H90 Door
Outward opening

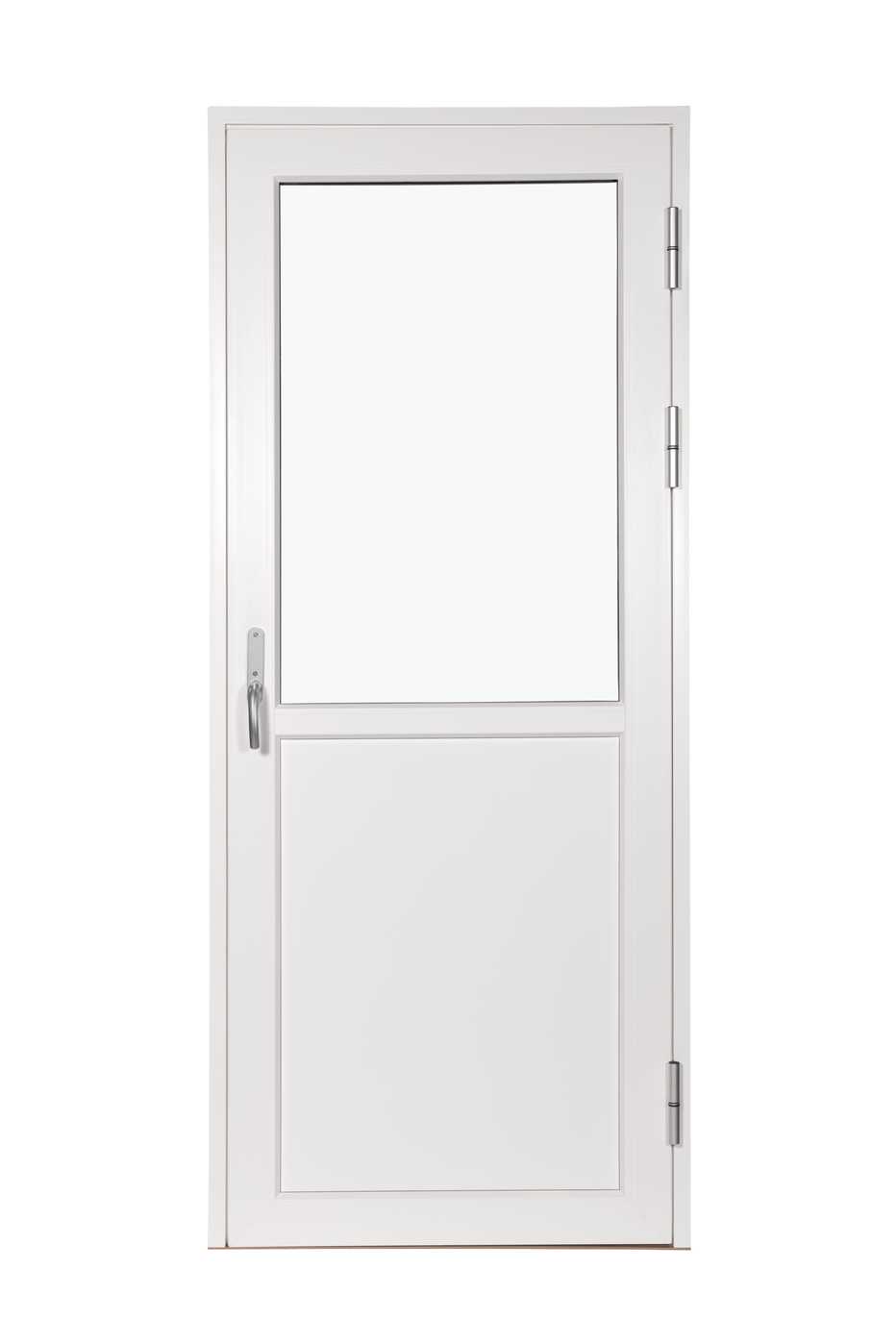

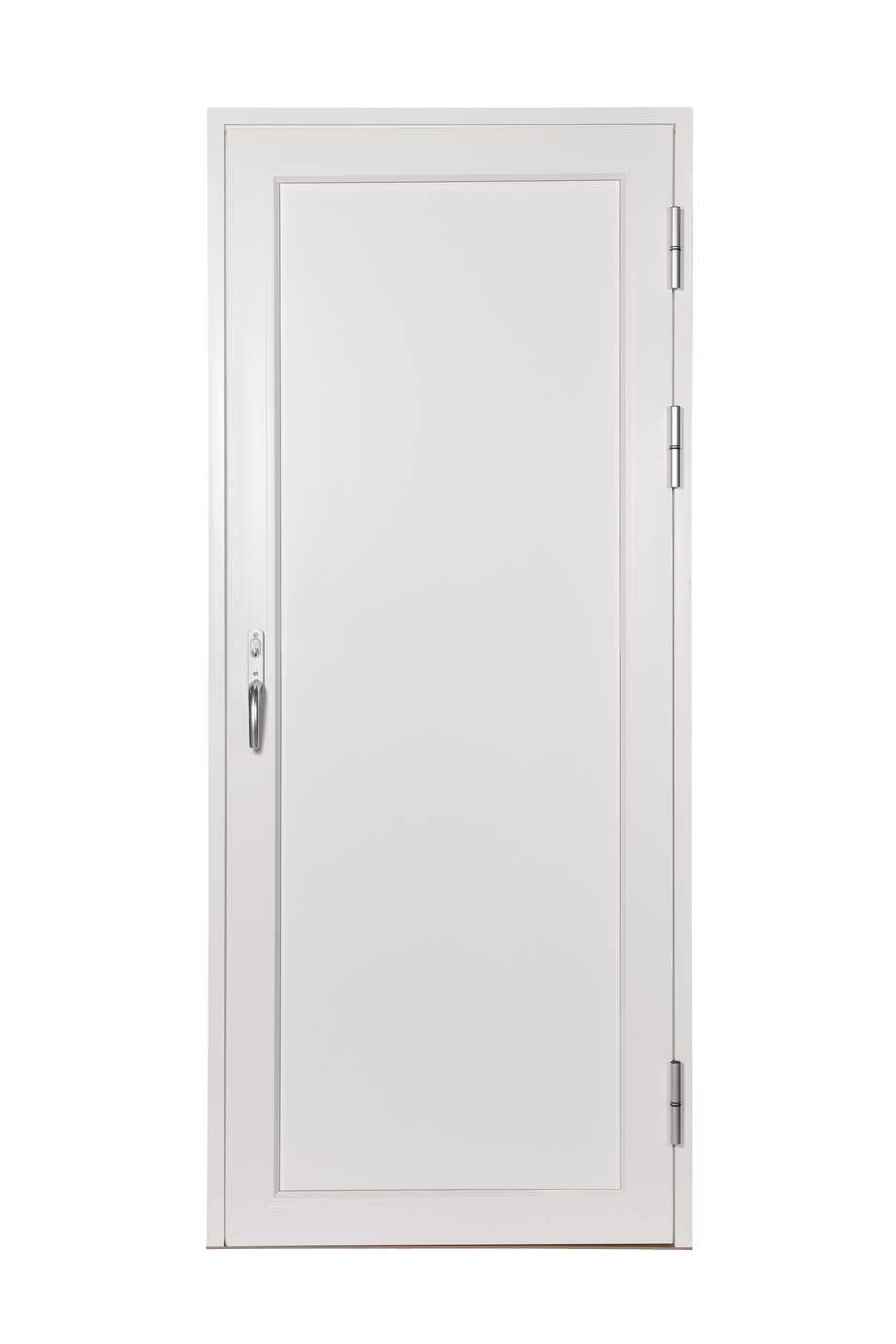

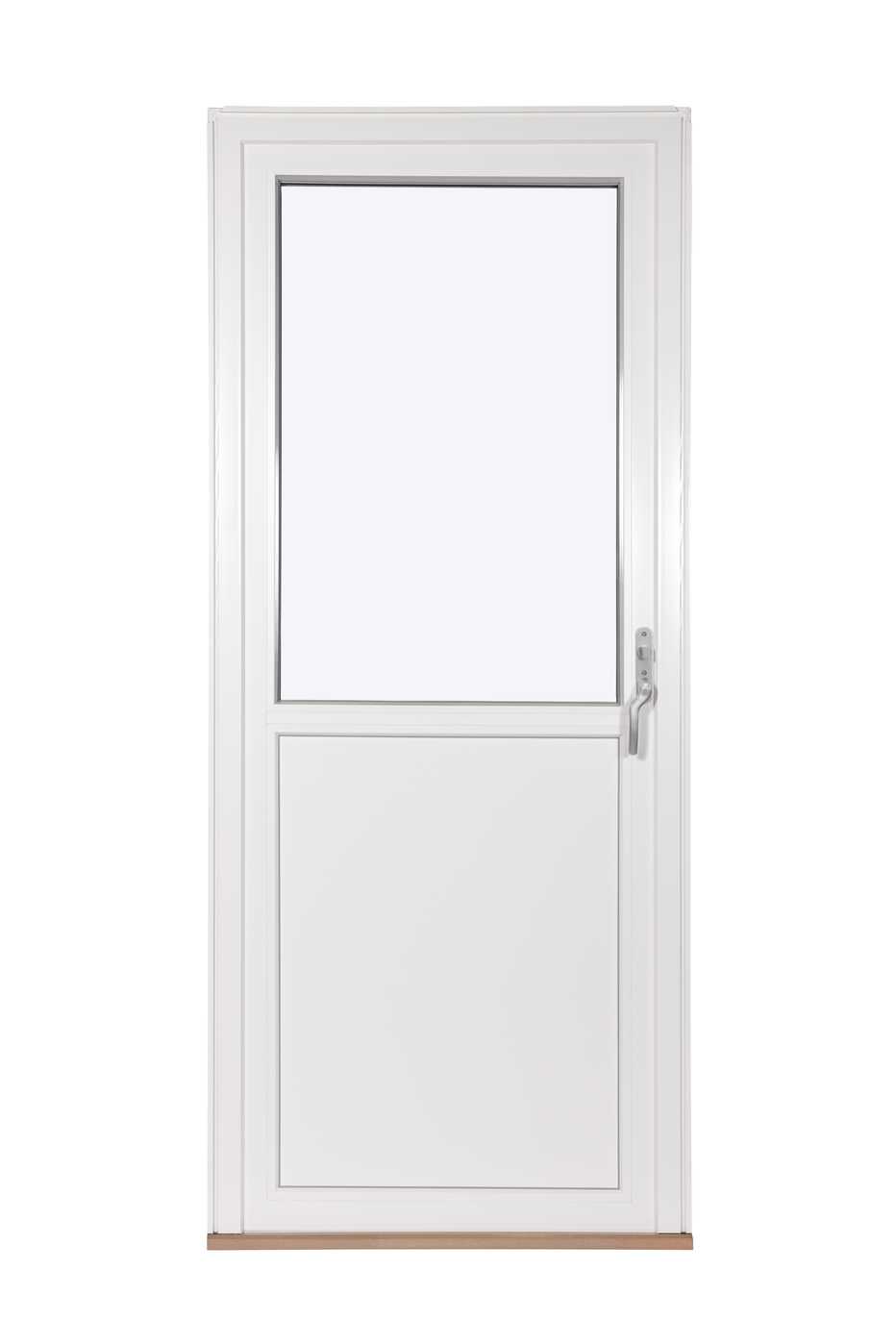

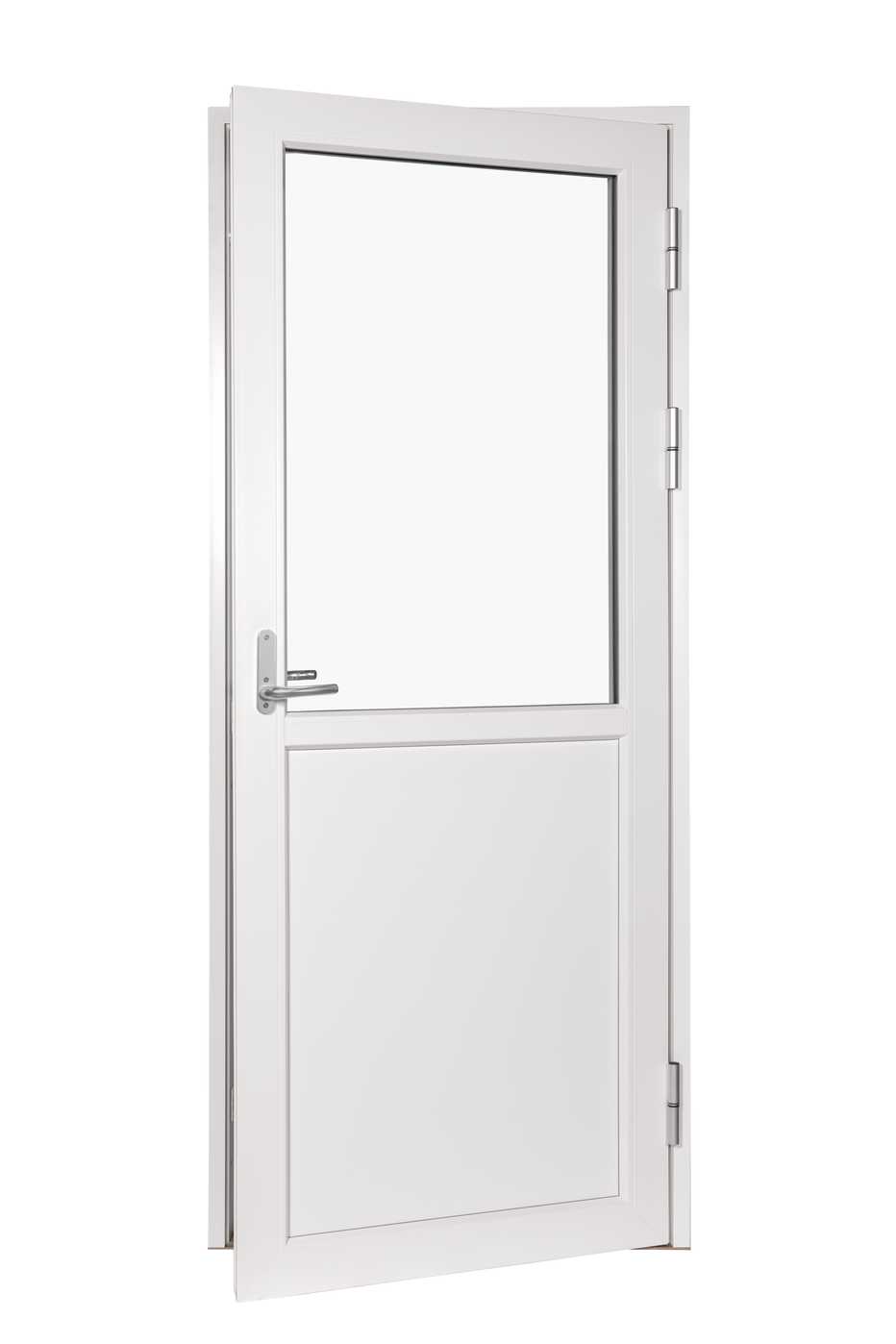

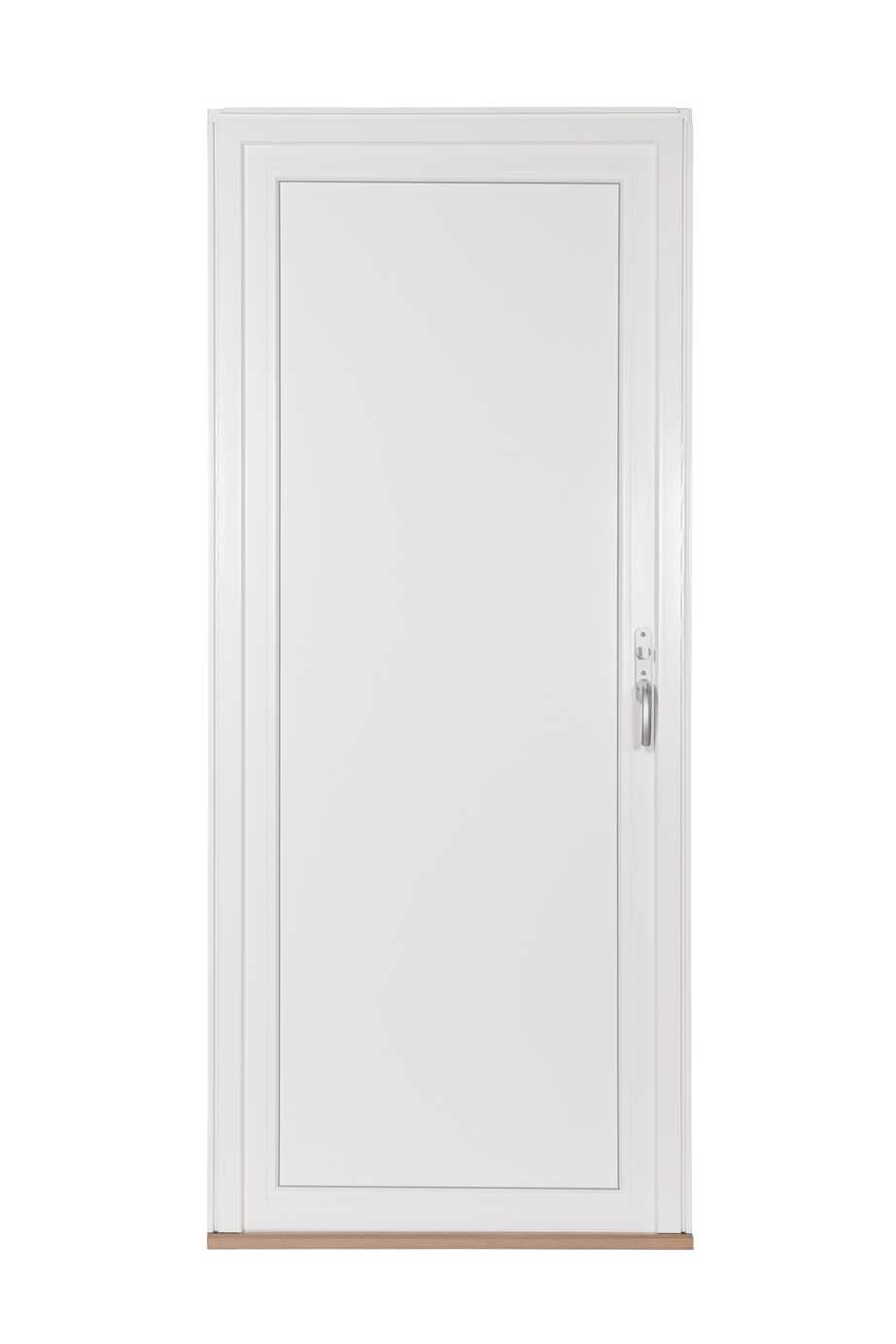

A further development of our very popular classic door, which has been produced and supplied for over 30 years. The door opens outwards and is supplied as a balcony door, secondary entrance door and internal door.
H90 Outward Opening Window
Side-hindges
The window is outward-opening and can be opened vertically outwards. It can be supplied as a single- or multi-sash window. Classic windows that are well suited for the rehabilitation of older homes, for cabins, or new buildings to give a completely traditional look. The windows also have the properties of a mod- ern window in terms of insulation and comfort. The window is light and easy to operate, the sash does not intrude into the room and therefore curtains and plants on the windowsill are not disturbed. Outwards opening window is getting tighter with increased wind pressure because the sash is pressed against the frame and gaskets.
H90 Top swing window
Two-handle
Fully reversible window. The window opens outwards and can be turned 180˚ when washing. When reversed the sash does not intrude into the room and therefore curtains and plants on the windowsill are not disturbed. The window is easy to maintain and clean from inside. Outwards opening window is getting tighter with increased wind pressure because the sash is pressed against the frame and gaskets. Fixed frames are used where there is no need to open the window for ventilation and provide opportunities for large glass areas and maximum light transmission. Fixed frames also offer more options when designing the window, and can be obtained, among other things, as a non-standard frame.
H90 Top swing window
One-handle
Fully reversible window. The window opens outwards and can be turned 180˚ when washing. When reversed the sash does not intrude into the room and therefore curtains and plants on the windowsill are not disturbed. The window is easy to maintain and clean from inside. Outwards opening window is getting tighter with increased wind pressure because the sash is pressed against the frame and gaskets. Fixed frames are used where there is no need to open the window for ventilation and provide opportunities for large glass areas and maximum light transmission. Fixed frames also offer more options when designing the window, and can be obtained, among other things, as a non-standard frame.
